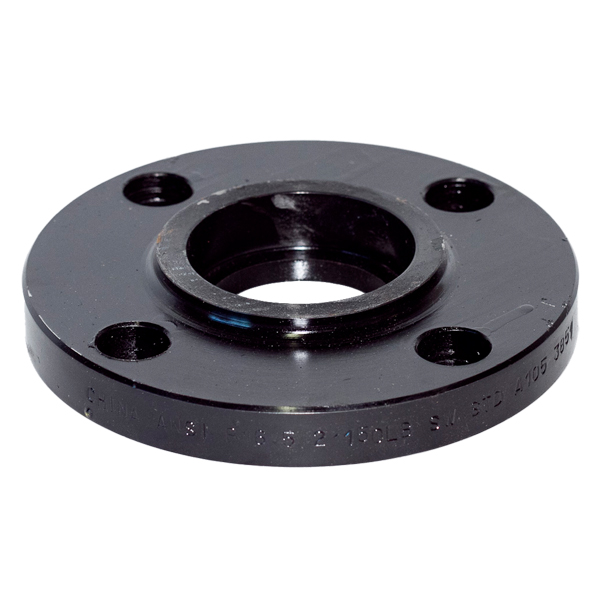

1) ANSI B16.5, ASME B16.47 FLANGE
Size range: 1/2" to 80" DN15 to DN2000 .
Design: welding neck, slip on, blind, socket welding, threaded, lap-joint
Pressure: 150#, 300#, 600#,900#,1500#, 2500#
Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS
Material: carbon steel A105, stainless steel F304/304L, F316/316L F321,F51
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
Package: seaworthy poly wooden case, wooden pallet
|
Flange Face Type |
SOP,SOH,Blind,Welding Neck,Socket Welding,etc. |
|
Process Method |
Free forging, die-forging, casting, plate cutting & machining |
|
Standard |
ANSI, ASME ,MSS, API,DIN, JIS, BS. AWWA and GB |
|
Connection |
Butt weld & Socket weld & Thread |
|
working pressure |
ANSI 150LBS-2500LBS |
|
DIN PN6-PN40 |
|
|
GOST PN6-PN200 |
|
|
JIS 1K-30K |
|
|
Flange Face Types |
Raised Face (RF) ,Flat Face (FF) ,Ring-Type Joint (RJ) ,Ring Type Joint Gaskets,Tonge-and Groove (TG),Male-and-Female (MF) |
|
Carbon Steel |
SS400,SF390A,SF440A,etc. |
|
Stainless Steel |
SUS F304/304L,316/316L,etc. |
|
Alloy Steel |
SFVA F1,SFVA F1A,etc. |
|
Nicke alloys |
Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800 |
|
Coating |
Rust preventing oil, spray paint (black, yellow), hot galvanization, cold galvanization or colored electroplate, powder coating and so on |
WHAT STEEL FLANGE WE CAN OFFER ?
TYPES OF FLANGES
The most used flange types in Petro and chemical industry are:
All types except the Lap Joint flange are provided with a raised flange face.
SPECIAL FLANGES
Except the most used standard flanges, there are still a number of special flanges such as:
