Product Information

We are Most Reliable Stockists, Manufacturers, and Exporters of ASME B16.47/ANSI B16.5 Heavy Barrel Flange, MSS SP-44 Heavy Barrel Flange, DIN86029 PN10 Heavy Barrel Flange, Series A & B Heavy Barrel Flange.

We keep huge preminum quality product stock of Class 150 Heavy Barrel Flat Faced Flange, Raised Face Heavy Barrel Flange, Heavy Barrel Forged Flange, Heavy Barrel Plate Flange, Class 300, 600, 900, 1500 Heavy Barrel Flange.

Heavy Barrel Flanges Specifications

Type Heavy Barrel Flange
Size ½” (15 NB) to 48″ (1200NB)
Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Dimensions ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Standard ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
BS BS4504 , BS4504, BS1560, BS10
DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
Coating / Surface Treatment Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
In Form SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Flange Face Type Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Connection Type Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove
Usage Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.
Packing No Fumigate or Fumigate Plywood/Wood Pallet or Case

Kingmetal steel industry Co.,ltd is a world Supplier of Heavy Barrel Long Weld Neck Flanges. The Heavy Barrel Long Weld Neck Flanges manufactured in stainless steel 304, 304L, 304H, 316, 316L, 316H, We also Manufacture Heavy Barrel Long Weld Neck Flanges at our other factory. KINGMETAL manufacture and provide a comprehensive range of Heavy Barrel Long Weld Neck Flanges. We are provide total Piping Solutions for various projects in India & overseas so far we’ve supplied Heavy Barrel Long Weld Neck Flanges to countries like UK, Ireland, Vietnam, Philippines, South Africa, Australia, Kenya, Nigeria, Iran, Russia, and lots of more, we’ve wide selection of producing capabilities and thanks to our proven diary & just one rejection rate became Kingmetal a perfect choice for major EPC Contractors across the worldwide for their Steel Fittings & Flange requirements.

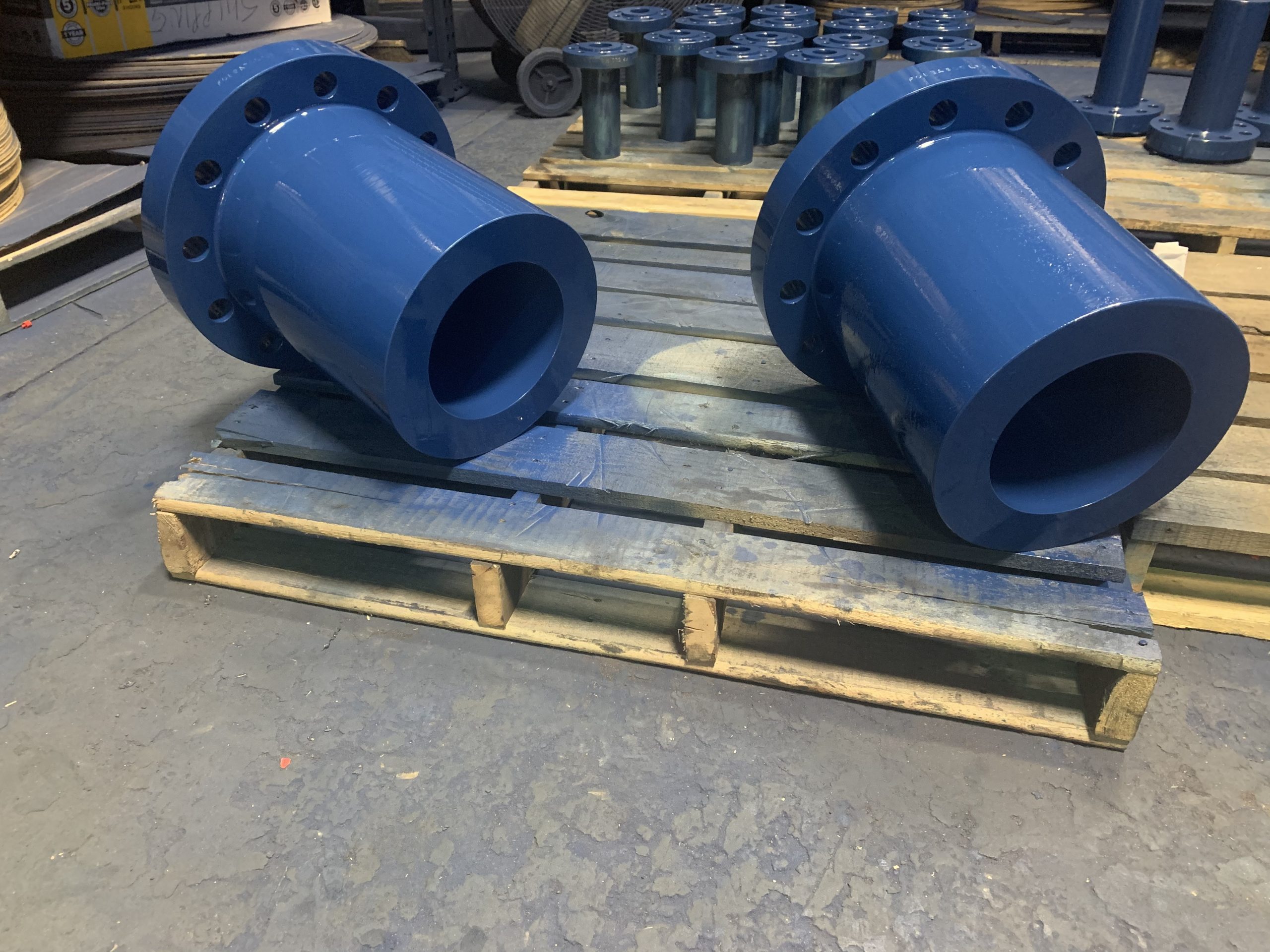

The Heavy Barrel Type HB Necks adds additional reinforcement beyond equivalent size lighter wall standard LWN. Common standard lengths are available from stock and can be increased to any more length to supply the offset needed. These connections are always supplied with a “Nut Stop” unless “Nut Relief” is requested. The within diameter of those connections for 12” and below are given an S80 pipe size bores, 14” and large HB Connections are offered with a bore equal to the nominal pipe size.
