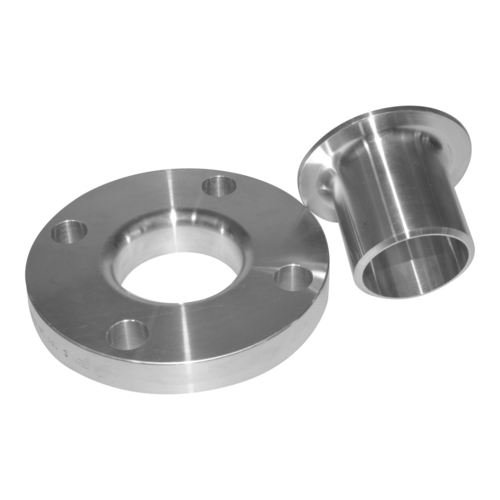

Hastelloy C276 Lap Joint Flange

Products Inquiry
Click Refresh Verification Code

Product Information

Supplier contact info. : sales5@kingmetal.com.cn   Ms wanfury


Hastelloy C276 Flanges are made up of the nickel chromium molybdenum alloy that is called hastelloy. The composition includes 50.99% nickel, 14.5% chromium, 15% molybdenum and carbon, manganese, silicon, sulfur, cobalt, iron and phosphorus in it. The Hastelloy C276 Flanges have high melting point of 1370 degrees Celsius. This high melting point allows for higher operating temperatures of the flanges. The material also has 790MPa minimum tensile strength and 355MPa minimum yield strength.


Hastelloy C276 Flanges                              Alloy C276 Forged Flange                               UNS N10276 SORF Flange

CNC machining ASTM B564 Hastelloy C276 Pipe Flanges, Hastelloy Alloy C276 Blind Flanges Price in China ..

The Alloy C276 Forged Flange is made through a forging process which makes the flanges stronger. These are made from a single piece of raw material to remain in shape. There are different sizes, standards and specifications for the flanges such as the UNS N10276 SORF Flange. The flanges can be of ASTM B564 specification and different standards according to the ANSI, ASME, EN or DIN standards. There are different sizes ranging from ½ inches to 60 inches in this grade of material.

he ASTM B564 Hastelloy C276 Pipe Flanges can also come in different pressure classes. The pressure classes range from 150 through 2500 and PN6 through PN64. There are different application types such as offshore oil drilling, power generation, petrochemicals, gas processing, specialty chemicals and others which use these flanges. There are special flanges like the Hastelloy Alloy C276 Blind Flanges which are used to close a pipeline either temporarily or permanently. The type of flange and the application requirements vary. The flanges are also used in pharmaceuticals, petrochemicals, sea water equipment, heat exchangers and in condensers. The ASME SB564 Alloy C276 Plate flange is another type of flange used in these industries. Please contact us for more information on these flanges and their prices.

Specification List of Alloy C276 Forged Flange

Specification List of Alloy C276 Forged Flange

Standards GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN
Pressure Rating ANSI Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600,
Pressure Calculation in DIN 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6
JIS 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K,
UNI 10Bar 16Bar 6Bar 25Bar 40Bar
EN 6Bar 25Bar 40Bar 10Bar 16Bar
Most common Types Threaded / Screwed / Forged / Plate
Production technique Forged, Heat treated and machined
Shapes and Types we produce Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF)
Test Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector
Equipment Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc

Size Schedule Chart of UNS N10276 SORF Flange

Nickel C276 Flange 1/2″ (15 NB) to 48″ (1200NB)
ASME SB564 Alloy C276 Slip on Flange 1/2″ NB – 24″ NB
ASTM B564 UNS N10276 Blind Flange 1/2″ NB – 24″ NB
