ASME B16.5 A105n Full Barrel Flange / A105 Nozzle Flange

在线咨询
Click Refresh Verification Code

产品详情

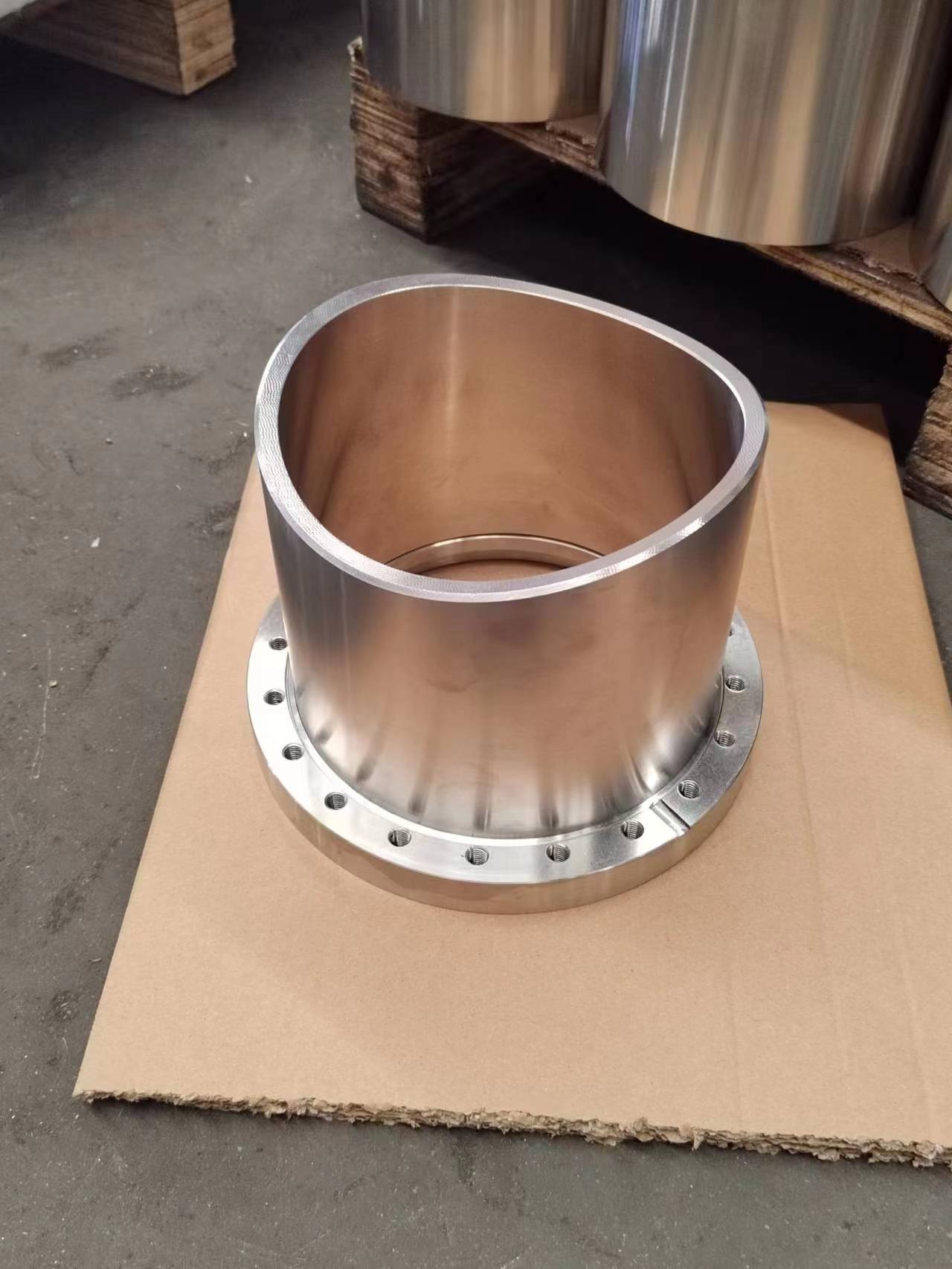

Reinforcing nozzles (barrel flange) made from ASME SA-105N / SA182 /
for pressures up to 2000 psi. we also can supply heavy barrel flange with PTFE coating

  • Forged, heat treated and machined
  • Per ANSI B16.5 or custom nozzle if provided with drawings
  • Testing specifications
  • Country of origin requirements
  • Material certification and complete test reports are available ,,,

Type of nozzles:

  • LWN Nozzle, "HB" Heavy Barrel Nozzle, "F" Full Body Nozzle
  • Variable Body "V1", "V2", "V3"
  • Self reinforced neck
  • Stub End Forging / Studding Outlets
  • Design Nozzles per your job
material of flanges we offer :

Steel Flange

Heavy barrel flange Flange Material

Carbon steel nozzle flange

ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH

P250GH, P280GHM 16MN, 20MN ,20#

Stainless steel nozzle flanges

ASTM A182, F304/304L, F316/316L,1Cr18Ni9Ti, 0Cr18Ni9Ti, 321, 18-8

Alloy steel

ASTM A182 A182 F12,F11,F22,F5,F9,F91etc.

Flange Standard

ANSI

Class 150 Flanges-Class 2500 Flanges

DIN

6Bar 10Bar 16Bar 25Bar 40Bar

JIS

5K Flanges-20K Flanges

UNI

6Bar 10Bar 16Bar 25Bar 40Bar

EN

6Bar 10Bar 16Bar 25Bar 40Bar

Flange TYPE

1.Welding neck Flange, 2.Slip on

3.Blind flange 4.Long welding neck flange

5.Lap joint flange  6.Socket welding

7.Threaded flange  8.Flat flange

Flange Surface

Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer, hot-dipped Galvanized, electrical galvanized

Connection

Welding, Threaded

Technical

Forged, Casting

Flange Size

DN10-DN3600

Flange Package

1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside).
2:As Customers' Requirements

Flange Heat Treatment

Normalizing, Annealing, Quenching+Tempering

Flange Applications

Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry,
Valve industry, and general pipes connecting projects etc.
